Materials
Construction materials
The cartridge body can be manufactured in different engineering materials depending on the chemical compatibility required.
- Acrylic resin for standard laboratory use
- PEEK / PAEK for solvent-oriented workflows
- PPS for solvent-oriented workflows
PEEK, PAEK and PPS are recommended for OSN applications.
Rotor compatibility
Each CentrivaLab family is designed around a specific rotor angle and tube class. The cartridges drop into the rotor positions of standard fixed-angle centrifuges — no adapters required.
Rotor compatibility — 50/34
Floor superspeed (~34°)
- Beckman Avanti J + JA-20 — 8 × 50 mL, 34°, 20 000 rpm (reference)
- Thermo Sorvall RC-5/RC-6 + SS-34 — 8 × 50 mL, 34°, 20 500 rpm
- Thermo Sorvall Lynx 4000/6000 + Fiberlite F21-8×50y — 8 × 50 mL, 34°, 20 000 rpm
- Thermo Heraeus Biofuge Stratos + HFA 15.50 — 8 × 50 mL, 34°, 23 300 rpm (benchtop)
Full pressure model and rmax values in the 50/34 specification page.
Rotor compatibility — 94/25
Benchtop high-speed (~25°)
- Sigma 12159 — 6 × 94 mL, 25°, 15 500 rpm (reference)
- Thermo FiberLite F15-6×100y — 6 × 100 mL, 25°, 15 000 rpm
- Sigma 12155 — 4 × 94 mL, 26°, 20 000 rpm
- Beckman FX6100 / JA-10.100 — 6 × 100 mL, 25°, 10 200 rpm
- Beckman VF 6.94 — 6 × 94 mL, 25°, 10 000 rpm
Full pressure model and rmax values in the 94/25 specification page.

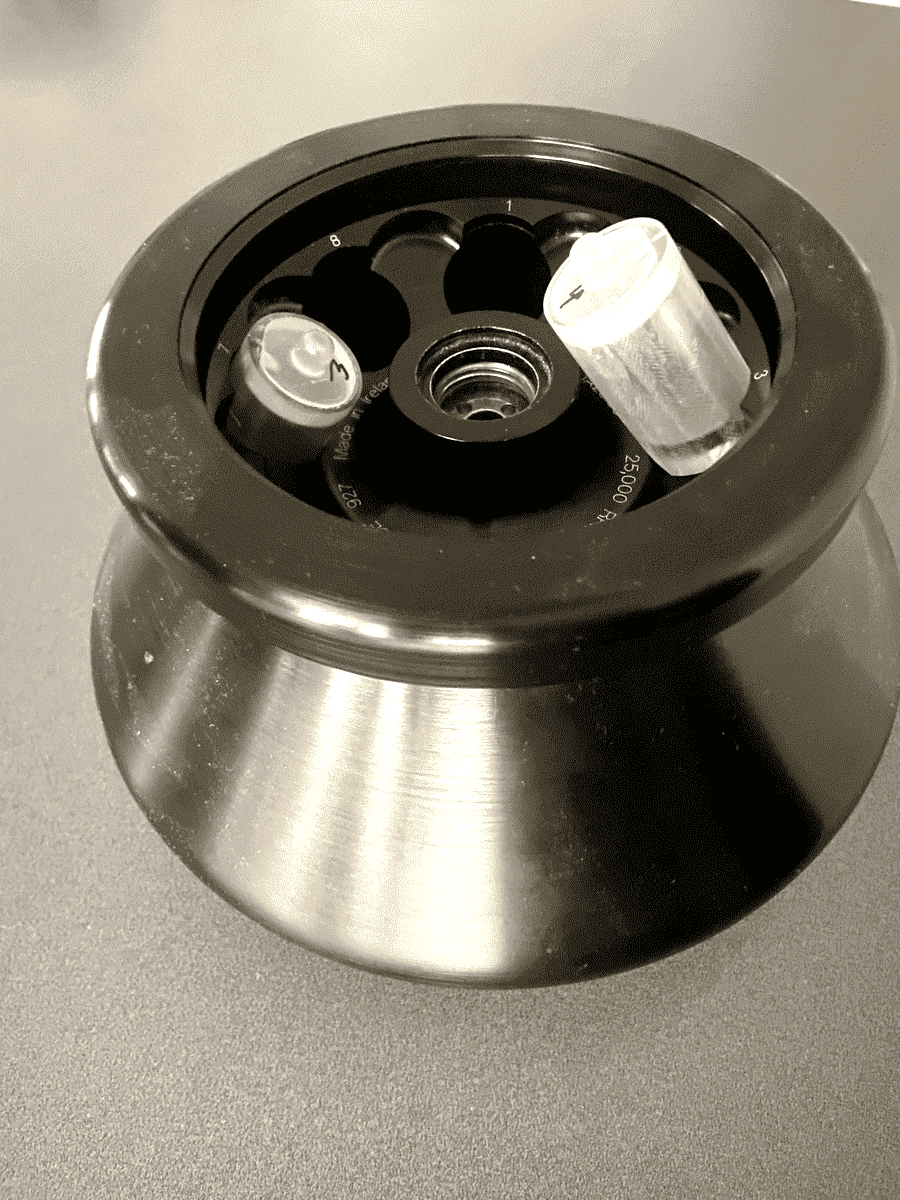

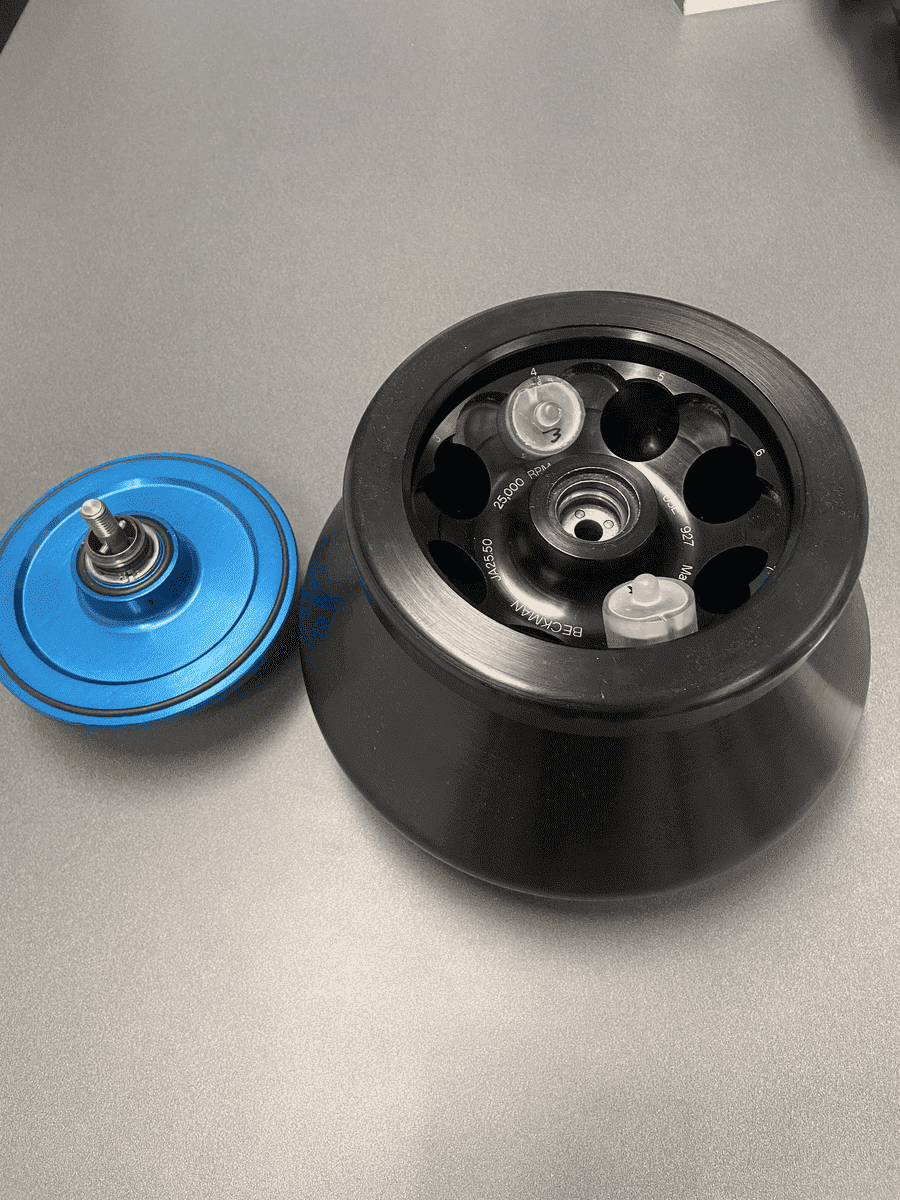

CentrivaLab 50/34 in a Beckman Avanti J rotor
Illustrative photos of CentrivaLab 50/34 cartridges loaded in a Beckman Avanti J-series JA-20 rotor.
